Alternate Drawings

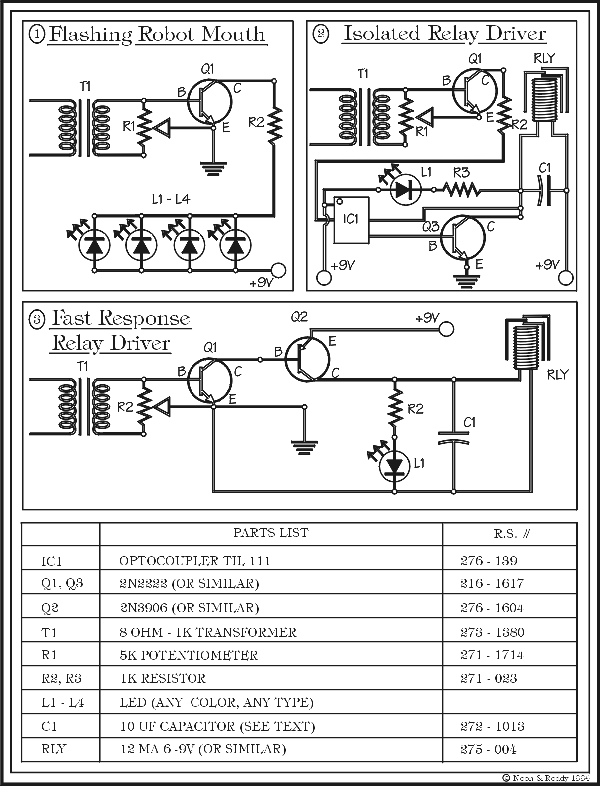

This page shows DC circuits that respond well to recorded speech and drive relays or flashing lights.  These can be coupled to a solenoid or motor for mouth movement.
Click Here to return to the ghoul page.
